DB9-F (Host) to RJ-45 RS-232 (Console) Adapter, ASM-600-A1

DB9-F (Host) to RJ-45 RS-232 (Console) Adapter, ASM-600-A1

1. DB9-F (RS-232) to RJ-45 Adapter & extend the signal of PC’ RS-232 for 15M (Max-Total length)
2. With 2 pcs Red/Green color LEDs to show Power /TXD /RXD signal.
3. Standard RS-232 DCE (DB9-F) to DTE (RJ-45) Interface
4. With DB9-F & RJ-45 Connectors / Easy to install, Plug & Play
5. Working type:  RS-232 (DB9-F) (DCE) to Host =>RS-232 (RJ-45) (DTE) to Console
6. Fully compliant with RS-232 Spec.
7. Data rate: Up to 921 K bps
8. Housing: Plastic / Weight: 35g / Dimensions (L*W*H): 45 * 48 * 24 (mm)

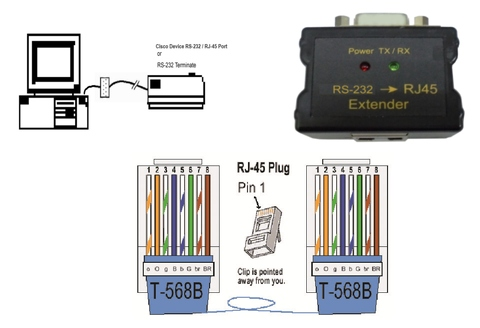

Pin assignment:
